Kit A Optimus/Primus etc 1/2 Pint for 96


Product Information

For the classic Primus & Optimus No:96 type paraffin stove (1/2 pint / .28L capacity) & many of the variants from other makers such as Radius, Burmos etc.  See dimensions below.

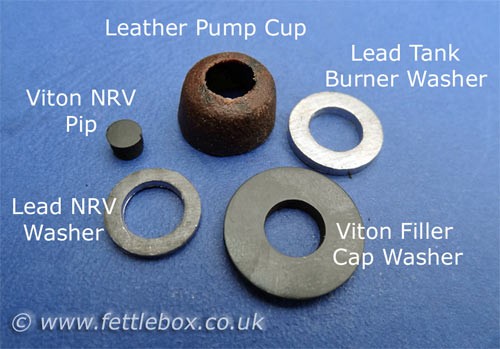

Kit contains

  • Premium leather pump washer - od14mm
  • VITON filler cap washer - od18/id8mm
  • VITON non-return valve (NRV) - Ø4.5mm pip
  • Lead external NRV washer - od12/id7.5mm (hdpe also available - select via drop-down box above)
  • Lead tank/burner washer - od14.3/id7.9mm
  • Brass NRV pip holder for NRV's that had moulded pip mounted direct on spring ( select option via drop down box above)


We sell kits for most popular types of classic camp stoves.  If you don't see the kit you need let us know - we may be able to make it.  If you need some parts from one kit & some from another we can also mix & match contents.

Product Code: KITA
