Kit D Optimus/Primus etc 1.75 pint 50, 51, 53, 54 (small 14mm pump)


Product Information

A comprehensive kit for the classic 1.75 pint / .8L stoves No:50, 51, 53, 54 etc (with 14mm pump leather) & other variants from other manufacturers (check dimensions). If your stove has the wider 17mm pump tube please order Kit C.

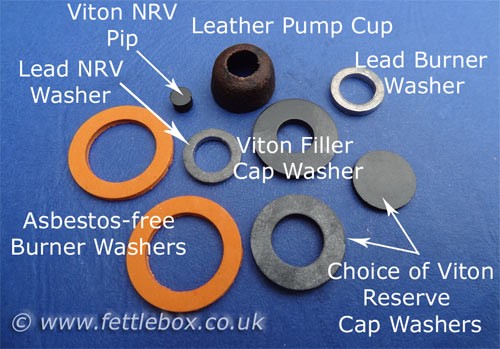

Kit contains:

  • Premium leather pump washer - Ø14mm
  • VITON filler cap washer od18/id10mm
  • Asbestos-free Burner Washer x 2 od21/id14.3mm (colour may vary)
  • VITON non-return valve (NRV) 4.5mm pip
  • Lead External NRV Washer - od12mm/id7.5mm  (HDPE also available - select via drop-down box above)
  • Lead tank/burner washer - od12/id8mm
  • VITON reserve cap for tank or pump mounted caps - Ø13mm
  • VITON reserve Cap for chain mounted caps od18/id10mm
  • Brass NRV pip holder for NRV's that had moulded pip mounted direct on spring ( select option via drop down box above)


For the same kit but with a Ø18mm pump leather please see our Kit C

We sell kits for most popular types of classic camp stoves.  If you don't see the kit you need let us know - we may be able to make it.  If you need some parts from one kit & some from another we can also mix & match contents.



Product Code: KITD
